MANUFACTURER OF RF & MICROWAVE DEVICES IN THE WORLD.

Nothing can be better than having a true expert that is a reliable service provider. Our aim is to offer the best products at the best prices.

ChengDU JIACI TECHNOLOGY is the supplier of RF and microwave devices in the world. JIACI has been engaged in designing and producing high quality Microwave components, assemblies and systems covering a frequency ranging from DC to 70 GHz. JIACI offers a complete range of standard items that support the most demanding applications in Aerospace, SATCOM, military and Telecommunications, etc.

01

OUR VISION

Devoted to becoming a trusted RF microwave technology company that offers products with high quality, superior performance and satisfying service in RF microwave and millimeter waves field.

02

OUR MISSION

Satisfying Customers, Building Brand, Inspiring Employees

03

CORE VALUES

Integrity, Quality, Efficiency

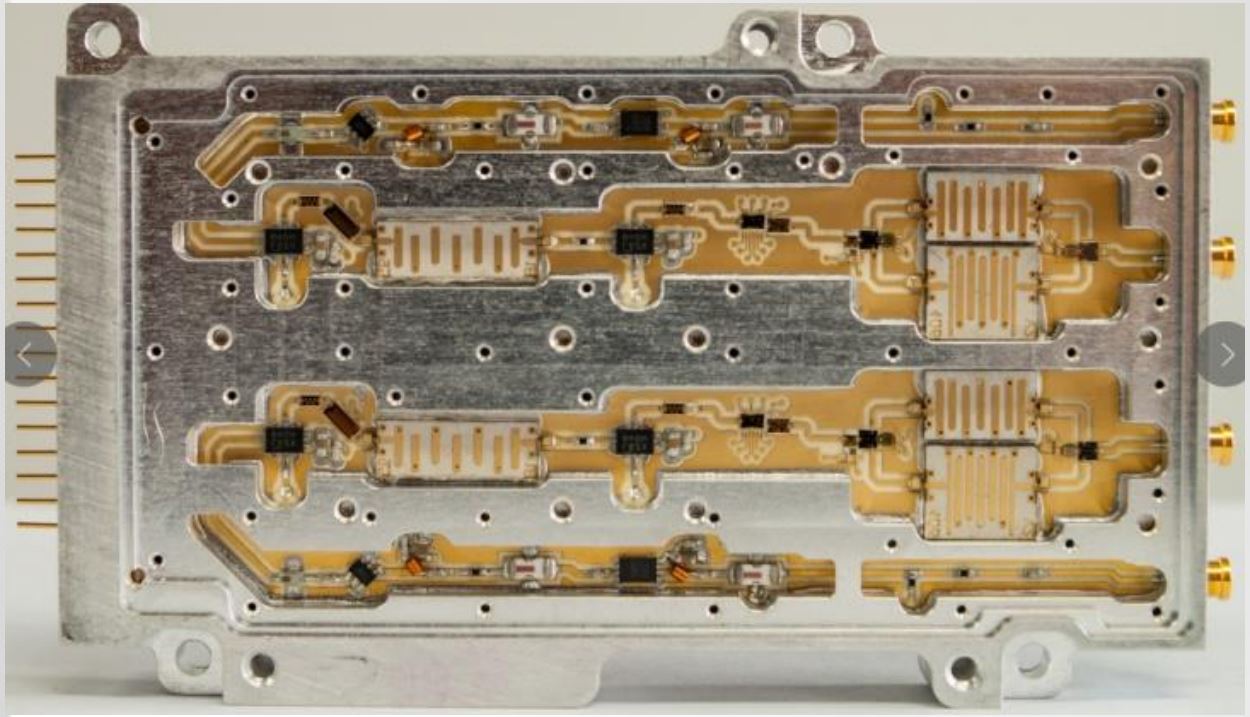

ACTIVE PRODUCTS

• LNA (Low NoiseAmplifiers)
• PA (PowerAmplifiers)
• PIN Diode Switches
• Attenuators (Digital Control/VoltageControl)
• Phase Shifters (Digital Control/VoltageControl)
• Detectors
• Limiters

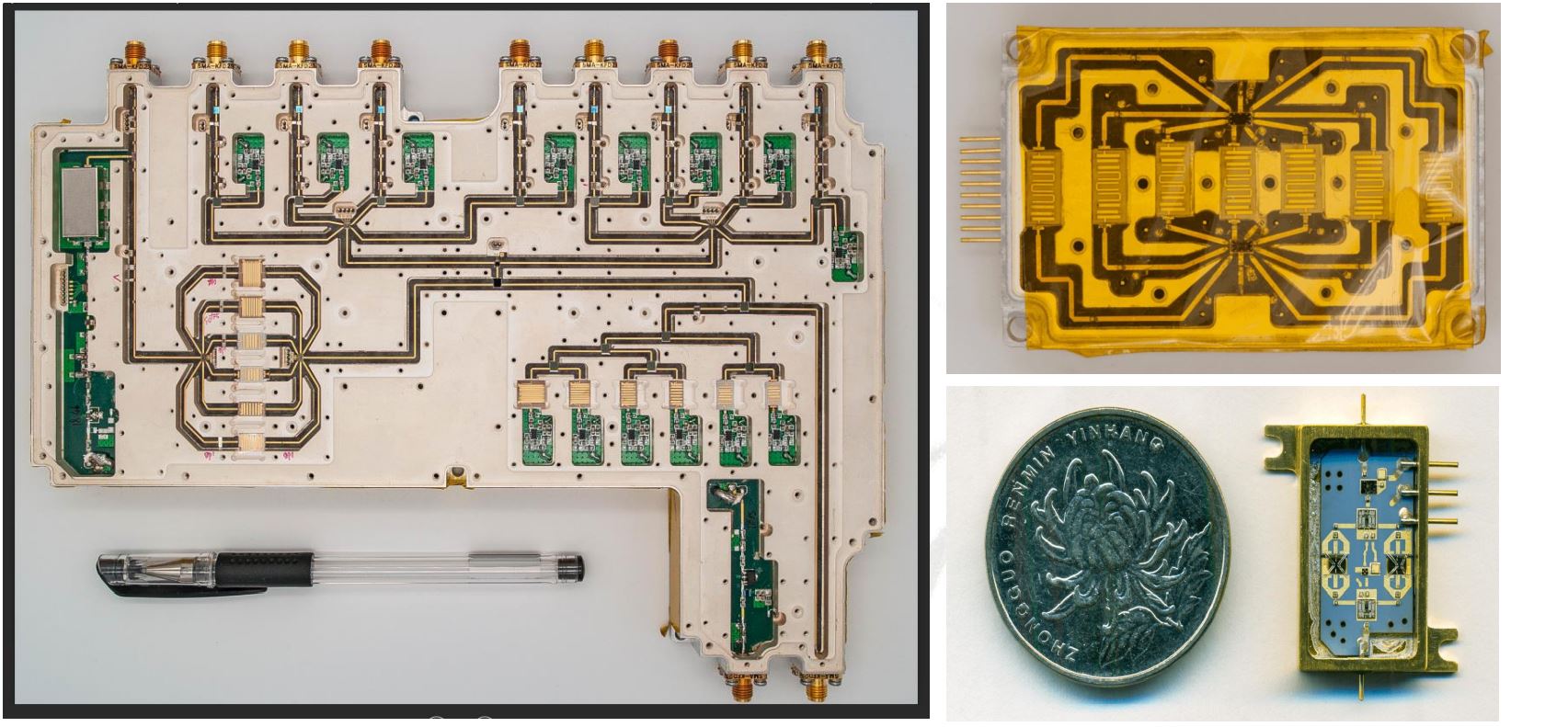

• Active Modules/Systems

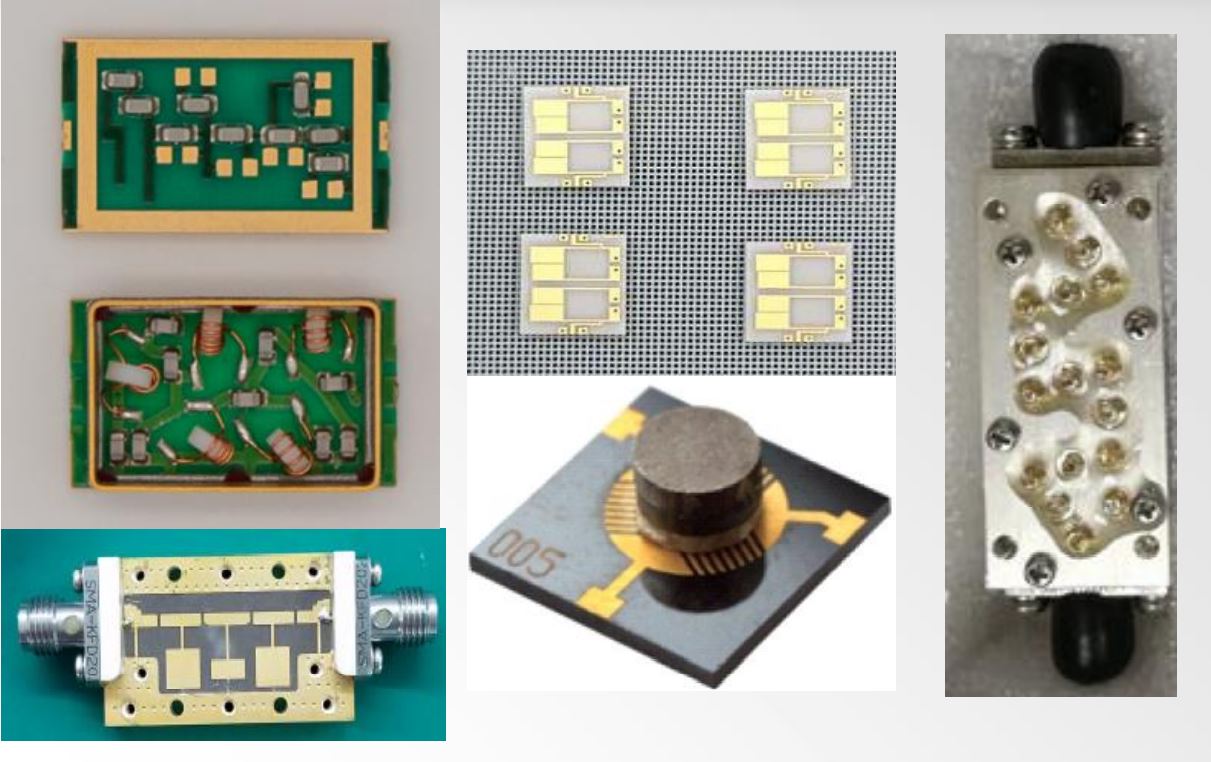

PASSIVE PRODUCTS

• PowerDividers/Combiners
• Couplers
• Hybrids
• Filters
• Duplexers/Multiplexers
• Circulators/Isolators
• Passive Modules/Systems

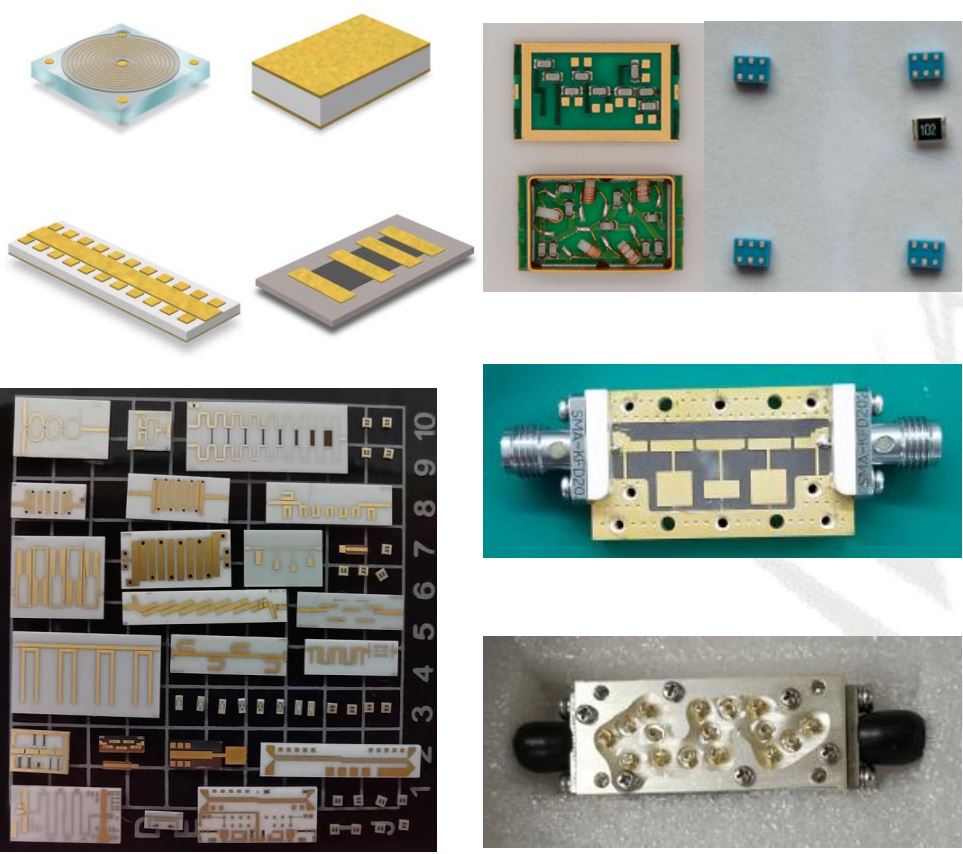

PASSIVE COMPONENTS

• All kinds of structures (SAW, LC, thin film, LTCC, cavity, waveguide, stripline)
• UP to 80GHz
• Compact size
• More than 300 standard products
• IPD device
• High power (300W cyclone)
• Ultra wide band (ex. 0.5GHz～18GHz HP
filter)
• Ultra-narrow band and low temperature drift

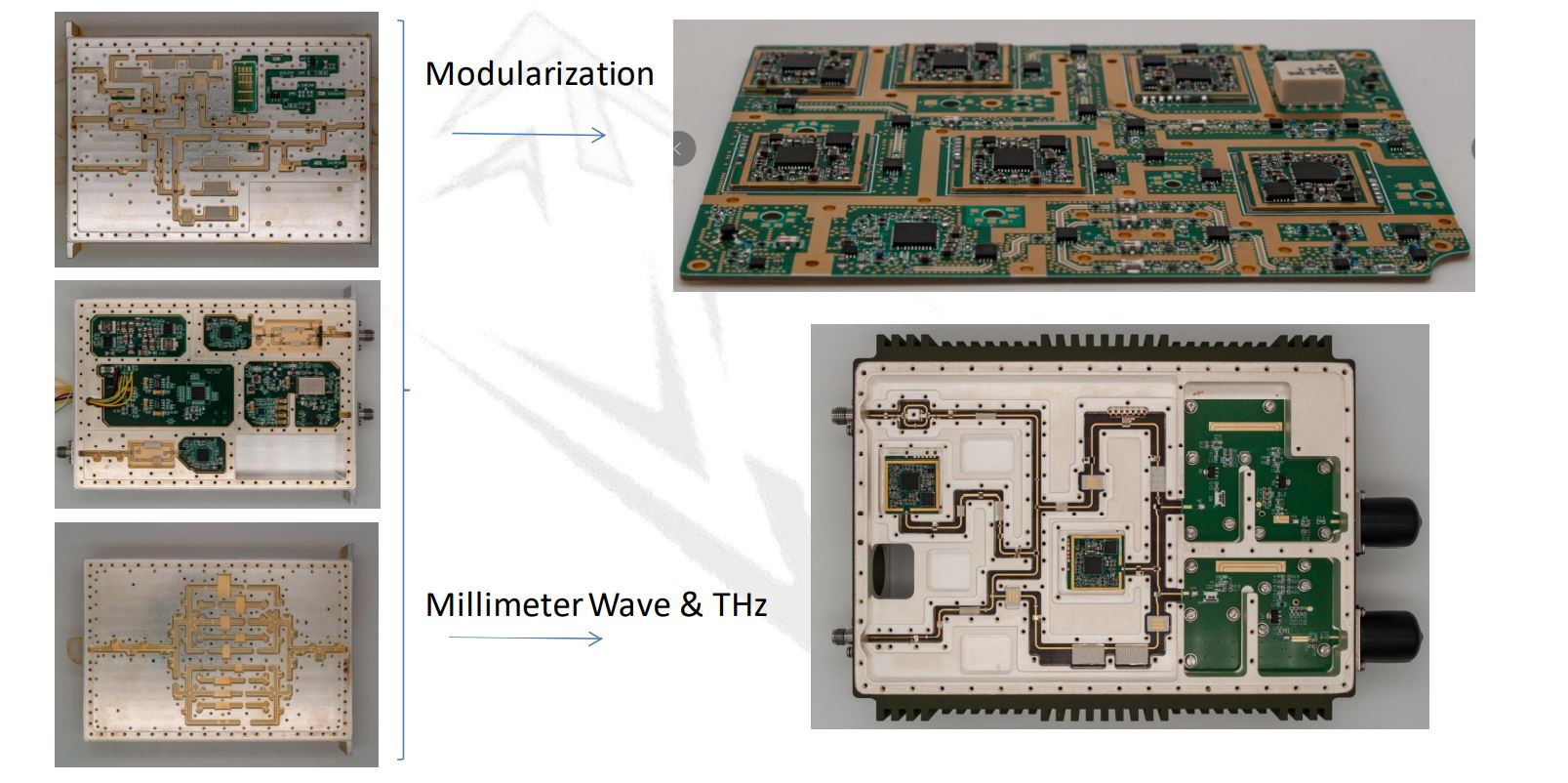

MORE MODULES

Product Introduction:

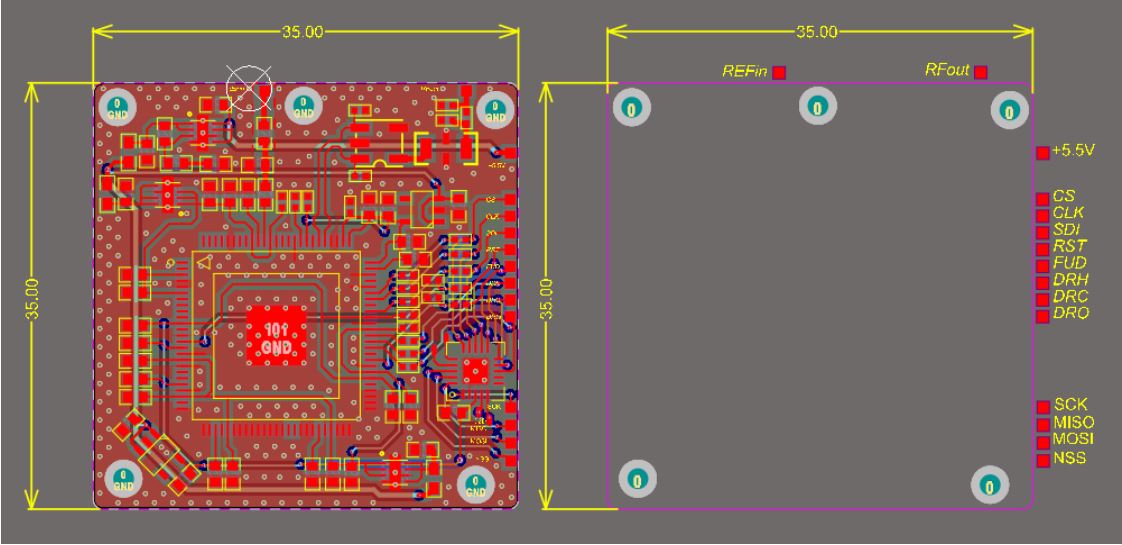

DDS frequency source module is a DDS signal generator module based on AD9910, which integrates DDS external components and is easy to use, and the clock frequency can reach 1Gbps. LDO power supply is integrated internally, and only one set of power supply is needed externally.

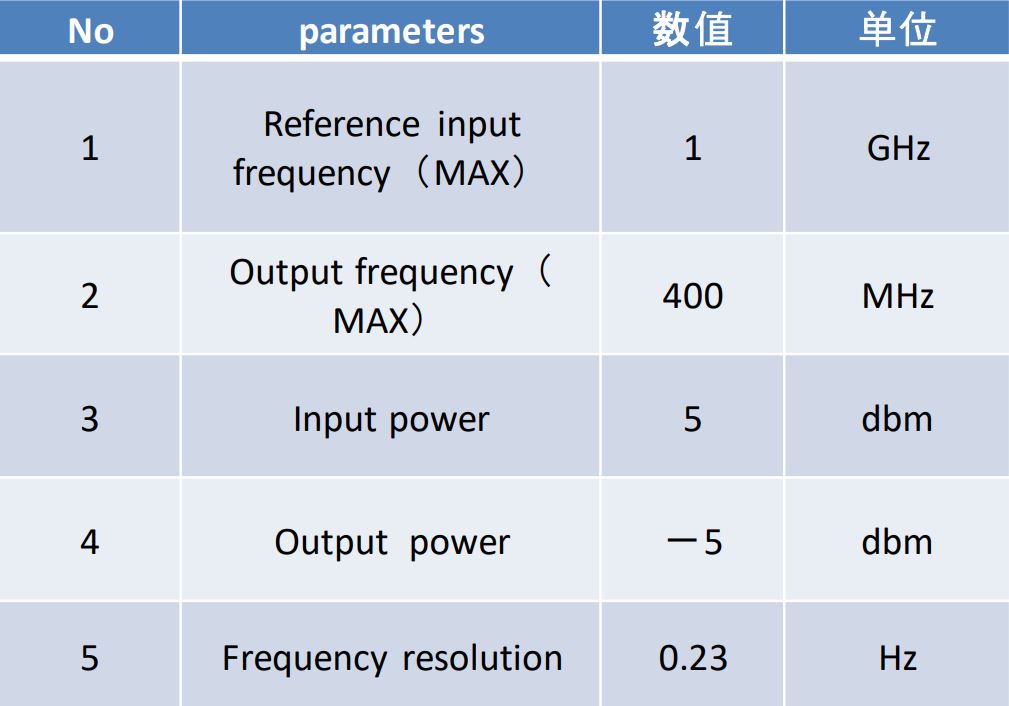

2.Electrical parameters (+25℃, vdd =+5v, vee =-5v)

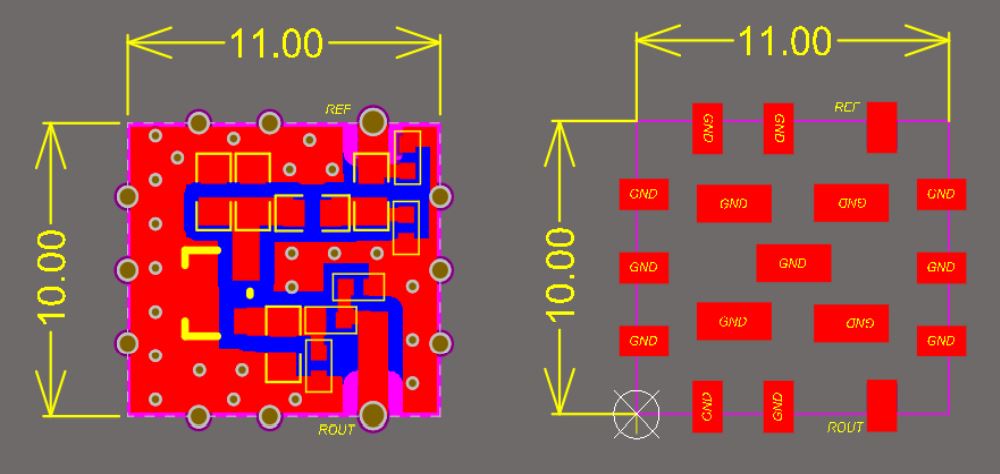

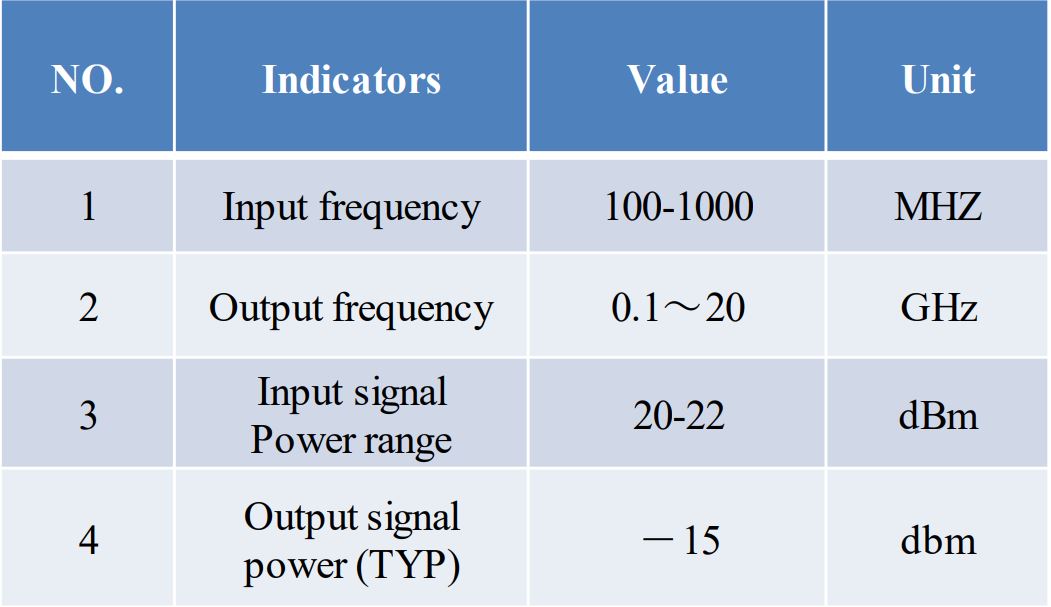

Product Introduction:

The comb generator is a passive comb signal generator with the advantages of modularization. It mainly realizes the output of 100 MHz-1000MHz signal to 0.1-20 GHz. The user selects the appropriate filter output according to the need. We can recommend
the corresponding filter scheme according to the user.
